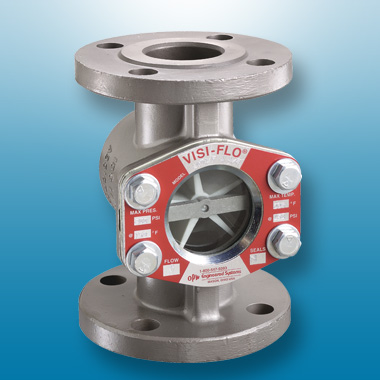

OPW VISI-FLO 1500 Series Sight Flow Indicators 流量視鏡
OPW VISI-FLO 1500 系列可視流量指示器
OPW工程系統公司提供對作業中的流體進行監控、檢測和顯示的產品。無論客戶是監控石石油產品、液化氣體、溶劑，或是危險的、腐蝕性化學品，OPW的儀器及配件都將幫助客戶控制這些流體。OPW提供完整系列的可視流量指示器，包括流行的VISI-FLO系列。OPW可視流量指示器提供了一種快速、可靠和便宜的途徑，通過該途徑可以核對流速和流向，以及監控流體管線中顏色和澄清度。OPW可視流量指示器各種尺寸、形式和材質可用于廣泛的工業應用中，所有OPW可視流量指示器都通過了1.5倍的額定壓力測試，從而確保其在惡劣的使用環境中擁有- 大的可靠性。
OPW工程系統公司具有60多年視鏡器的生產經驗。在多年的產品設計和制造過程中，我們進行了多次技術革新，使得VISI-FLO成為市場上- 響亮的視鏡流量指示器的產品品牌。VISI-FLO的產品有兩個系列：標準1400系列和1500高壓、高溫系列。OPW 1500 Series VISI-FLO are designed for applications with a maximum operating pressure of up to 400 PSIG and/or temperatures up to 350F (177C)*. * Special high temperature seals are available; consult factory for details.
OPW VISI-FLO® Sight Flow Indicators 可視流量指示器 PDF
Standard Features
Exclusive 3-Year “No-Leak” Guarantee – VISI-FLO's innovative radial seal creates a constant and uninterrupted sealing force between the body and outside diameter of the glass lens. This sealing method provides a longer lasting and better seal than conventional flat seals.
Maintenance-Free Design – VISI-FLO's unique, bolt-on-body design requires no special maintenance or torquing sequence be followed to prevent leaks. This results in a safer, more reliable sight flow indicator than those units using tie rods to fasten lens and seal to body. Dimensionally Interchangeable – “FJP” Flanged VISI-FLO?s feature end-to-end dimensions that match Jacoby-Tarbox and Penberthy and other manufacturers' units. “FJP” units are available in 3/4", 2", 3", and 4".
Shipment Within 48 Hours on Most Items
Rated for Vacuum Service- up to 635 mm (25”) at 85.5% vacuum. This equates to 12.3 PSI vacuum.
VISI-FLO的創新性徑向密封設計為殼體和玻璃視鏡的外徑之間提供了恒定的、不間斷的密封力。與傳統平面密封（通常帶拉桿設計）相比，上述密封方法提供了持續時間更長、密封效果更佳的密封性能。
無需維護
VISI-FLO獨有的螺栓緊固殼體設計無需專門的維護或扭轉工序。因此與使用拉桿來緊固視鏡和密封殼體的產品相比，上述設計更安全、更可靠。
OPW VISI-FLO Sight Flow Indicators
OPW Engineered Systems offers a complete line of sight flow indicators, including the popular VISI-FLO series.Sight-flow indicators are a cost-effective and efficient way to visually monitor the flow of fluids and to determine if any problems exist at certain points along the industrial process line. VISI-FLO is the most thoroughly engineered sight-flow indicator on the market and is available in three series: the Standard 1400 Series, the 1500 High-Pressure/High-Temperature Series and the 1600 OEM Series.
Exclusive 3-Year "No-Leak" Guarantee: An innovative radial seal creates a constant and uninterrupted sealing force between the body and outside diameter of the glass lens for a longer-lasting and better seal than conventional flat seals
Maintenance-Free Design: Bolt-on-body design requires no special maintenance or torqueing sequence in order to prevent leaks, resulting in safer operation than units using tie rods to fasten the lens and seal to the body
Dimensional Interchangeability: Feature end-to-end dimensions that match Jacoby-Tarbox and Penberthy and other manufacturers' units. Available in 3/4", 2", 3" and 4" sizes
OPW Engineered Systems offers a complete line of sight flow indicators, including the popular VISI-FLO series.
VISI-FLO 1400 Series Sight Flow Indicators
VISI-FLO 1500 Series Sight Flow Indicators
VISI-FLO 1600 OEM Series Sight Flow Indicators
